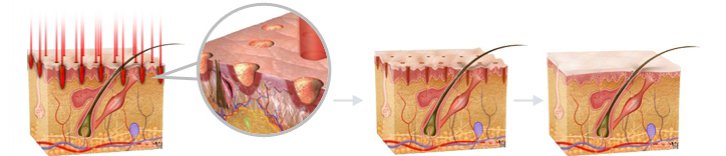

Based on the theory of selective photothermolysis, the fractional CO2 laser machine has the advantages of rapid and remarkable effects, minor side effects and short recovery time, which are the combination of the merits of both the invasive treatment and the non-invasive treatment. The treatment with fractional laser refers to evenly perforating micro-holes on the skin with laser to induce a series of biochemical reactions, thus to achieve the effects of skin tightening, skin tendering, and removal of colored spots. The fractional laser treatment covers only part of skin tissues, and the newly perforated holes will not overlap each other, so part of the normal skin can be reserved to quicken recovery so that patients can return to normal life four or five days later. The treatment itself is safe enough that can be practiced in any part of the body. The indications may include acne scars, spots lightening and removal, surgical scars, traumatic scars, burnt scars, chloasma, poikiloderma, wrinkles, cutis laxa, and photoaging skin.
Applications
Efficient cooling system ensures long
Skin renewal and regeneration;
Remove acne and scars;
Remove all kinds of wrinkles;
Remove neoplasms;
Improve intractable spots like chloasma, senile plaque and freckles, as well as chromatosis;
Treat telangiectasis;
Sun damage recovery and skin renewal;
Exfoliation;
Skin tendering and tightening, and pore minimizing;
Pierce ears;
Effective treatment with skin dehydration and roughness;
Cutting head:tissue resection and cutting;
Gynecology head: mainly for vaginal tightening and treatment of cervical erosion;
Dentistry head: E.N.T. treatment and dental cutting;
Andrology head:foreskin removal.
Features
The imported USA Coherent RF Tube is of stable performance, high energy and long life expectancy.
The 7-jointed light-conducting arm brings more accurate treatment and easier operation. (Light conducting arm is the output tube of laser for reflecting the laser beam from the laser power supply, and then focusing into points to be emitted.)
The new product is equipped with torsional spring rather than hammer, so it is more handy and accurate for treatment.

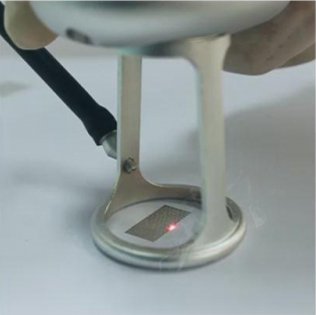

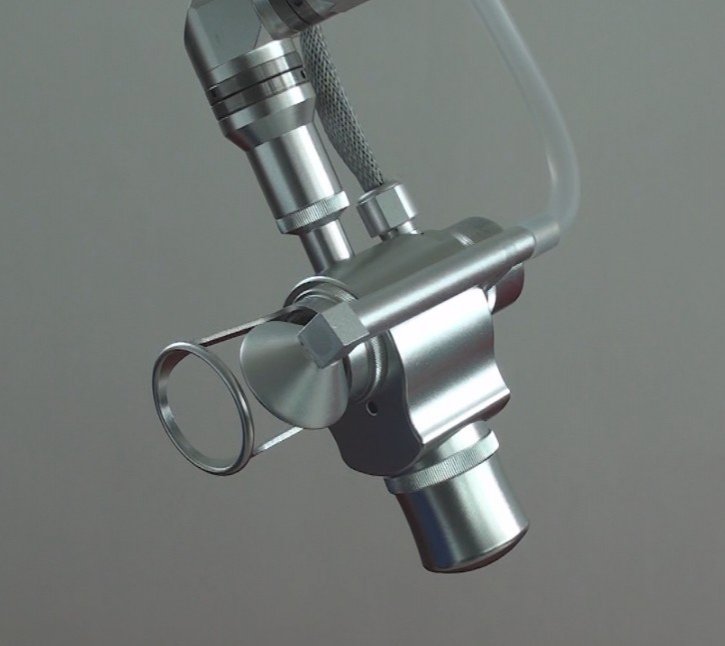

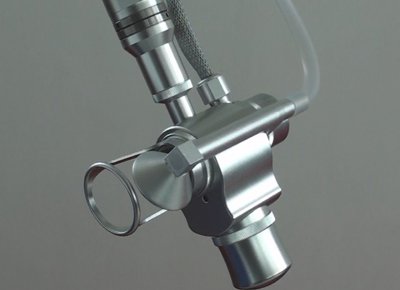

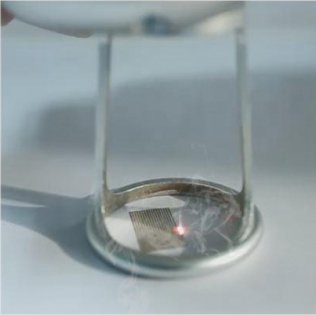

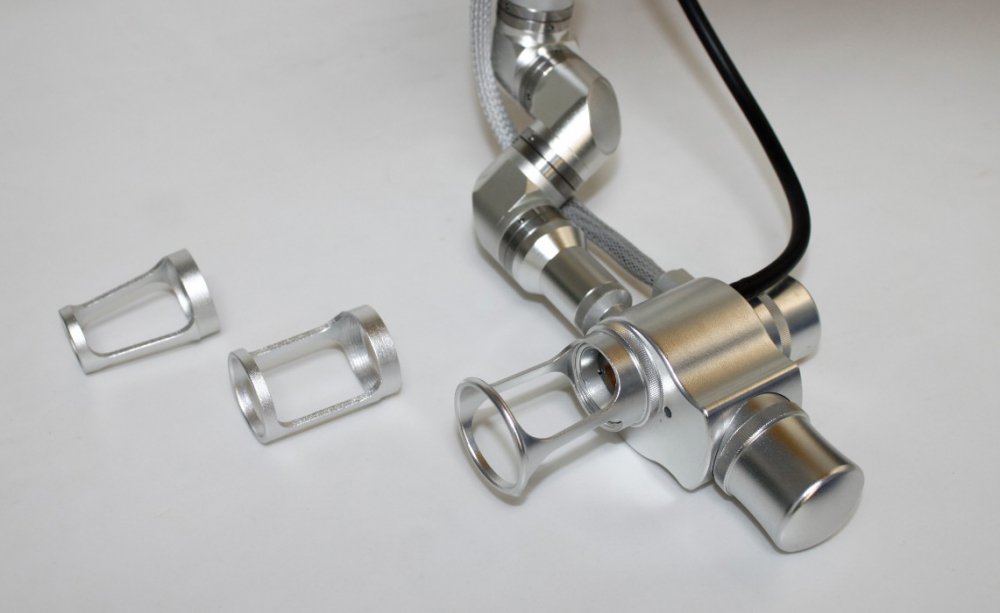

Scanners with three different dimensions (15 mm, 20mm and 35 mm) can meet the treatment in different areas.
Arbitrary switching between two scanning modes (random: can relieve pain; sequence: a little pain).

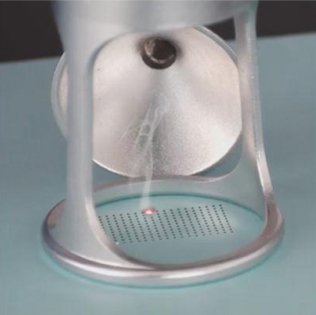

There are 16 scanning patterns with adjustable sizes, so that a hollow one can be selected for protection.

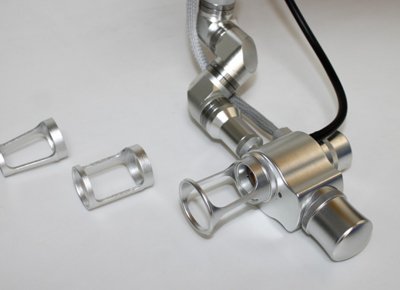

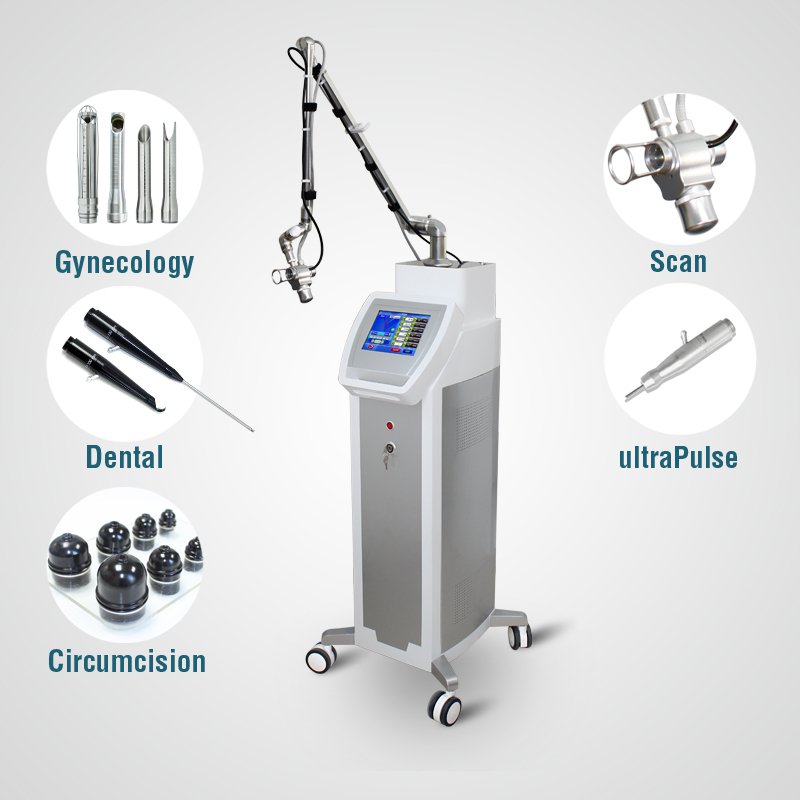

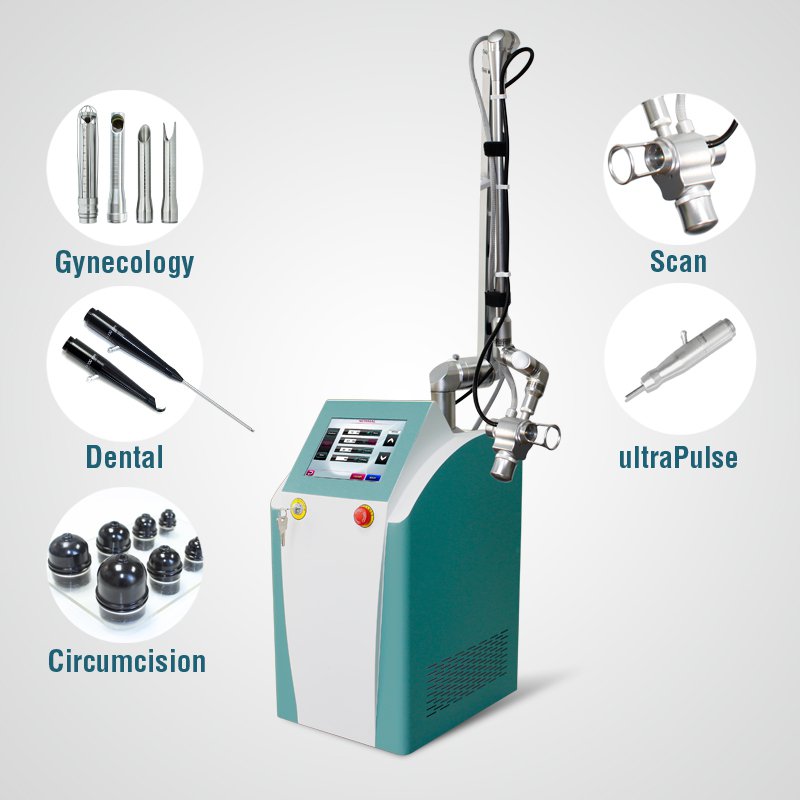

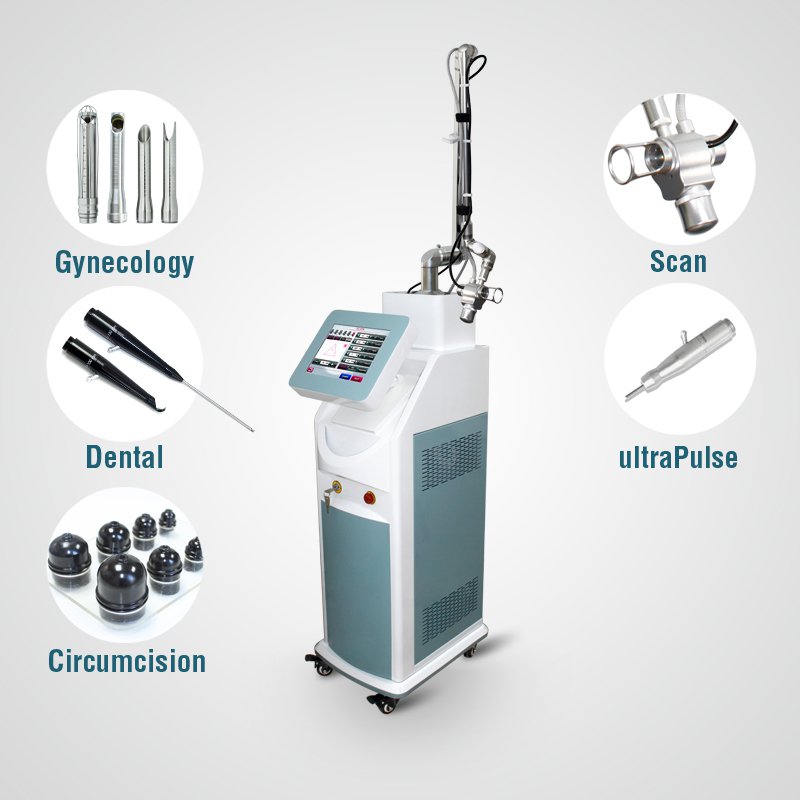

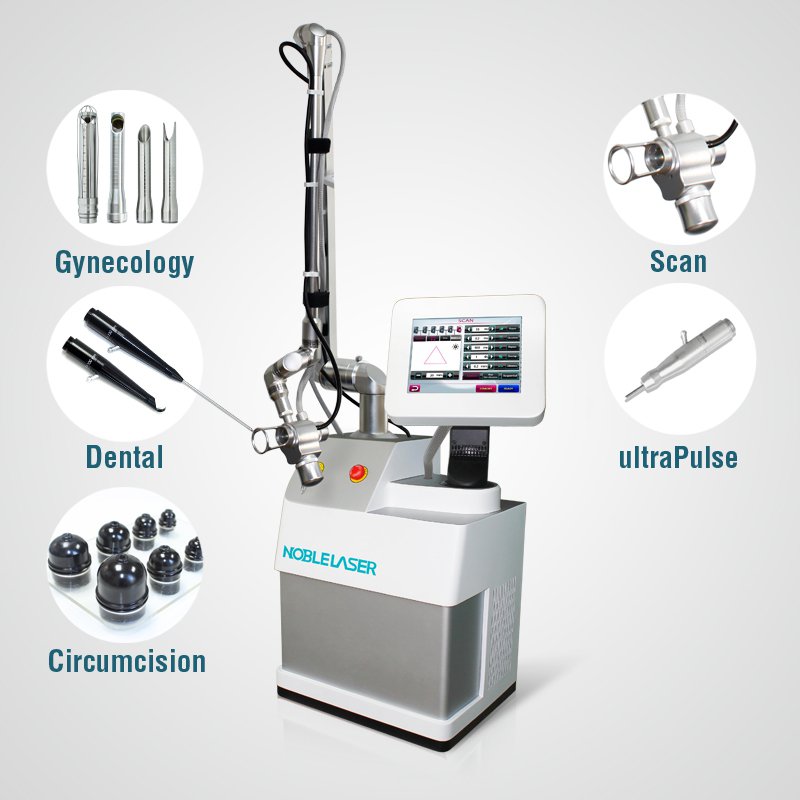

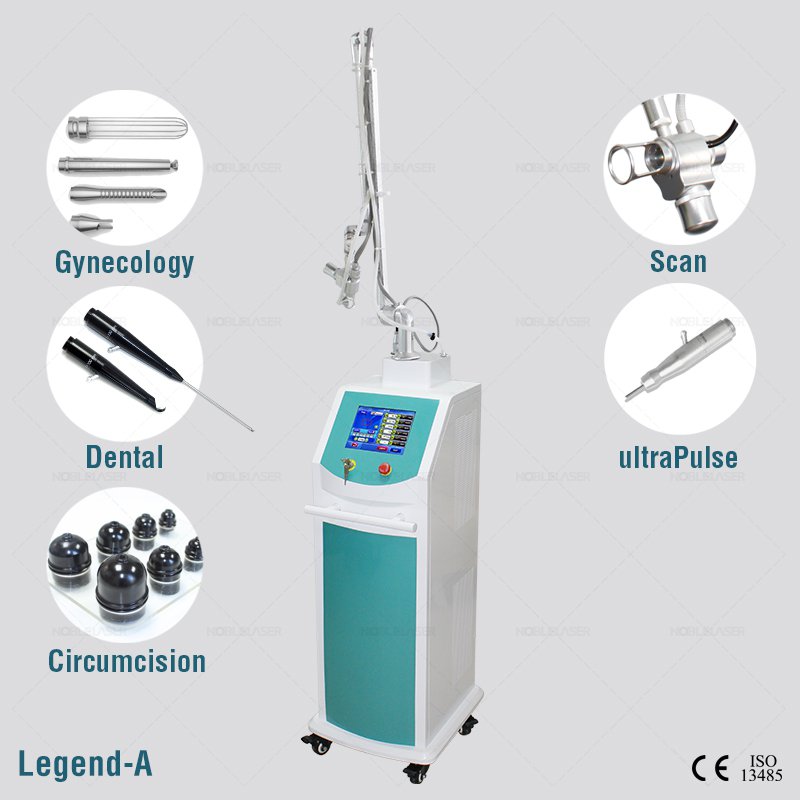

Five different hand pieces including scanning heads, cutting heads, E.N.T. & dental heads, gynecology heads, and andrology heads, are of wider treatment range and higher efficiency.
The automatic startup security detection system (on laser, temperature and voltage) and the parameter memory are convenient for the treatment of regular clients.

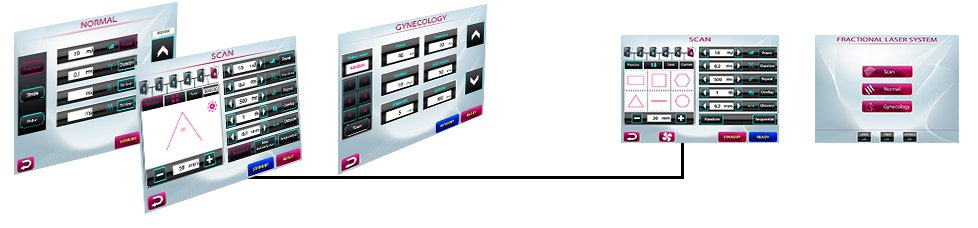

SoftwareA new generation of high speed scanners
The most advanced purification system can absorb all gas and dust to make the treatment healthier and more comfortable.
Nothing for the gas&dust
Blowing off the gas&dust
Suck away the gas&dust
Random
Senquential
Max dot distance
CW
Single
Pulse
SCAN
CUTTING
Parameters
Screen
8.4inch LCD real color touch screen
Light conducting system
7 jointed arms to conduct light
Laser
Metal RF driver tube(coherent)
Available treatment head
Scan
UltraPulse
Dental
Gynecology
Andrology
Wavelength
10.6µm
Power
30W
MODE
Scan, Normal
Laser energy
10mj~1000mj
Step value
5mj
Scan patterns
Square
Rectangle
Circle
Triangle
Hexagon
Line
Torus-Light
Torus-Mid
Square with hollow
Rectangle with hollow
Circle with hollow
Triangle with hollow
Hexagon with hollow
Line with hollow
Deep-Dots
Fusion
Scan pattern size
0.1x0.1mm-20x20mm
Scan Mode
Random; Sequence;
Dot quantity
2500 dots at most
Pulse duration
0.2-4ms
Spot distance
0.2---2.0mm (0.2mm)
Pulse energy
1mj to 120mj
Cooling system
air cooling system
Laser apparatus
Sealed off laser device stimulated by direct current
