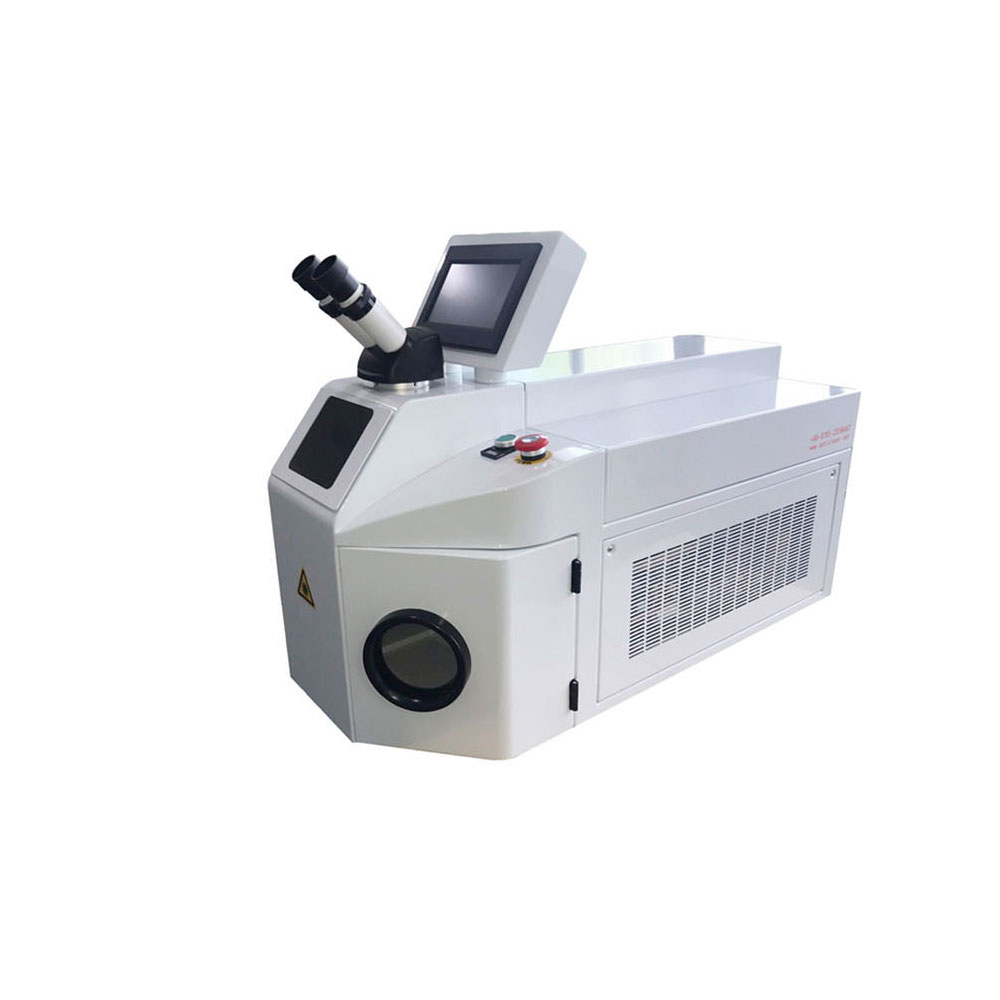

Laser Welding Machine

Laser Welding Machine

    Description

    The laser spot welding machine can mainly weld gold, silver, platinum, titanium and its alloy, electric nickel belt and other materials, can be used for jewelry, watches gossamer, integrated circuit lead all kinds of tiny, heat sensitive parts of precision welding, Devices, electronics, communications, machinery, automotive, military, gold jewelry and other industries.

Specifications:

Product Name YAG Jewelery welding machine
Laser Source ND:YAG
Wavelength 1064nm
Max Power 700W/ 140W/ 200W/ 500W/ 1000W/ 2000W/ 5000W
Frequency 0.1- 30Hz
Pulse Width 0.1- 20MS
Beam Diameter Adjustment Range 0.3- 2mm
Aiming Positioning Microscope (the CCD Camera system is optional)
Positioning accuracy +/-0.02mm
Concentrator emitter Ceramic Concentrator from UK
Power supply 220V/50Hz/30A
Chiller power Internal chiller

Introduction of Laser Welding Machine:

Advantages:

1. Corrosion resistance, high temperature resistance, high photoelectric conversion efficiency, long service life.
2. Laser energy, pulse width and frequency are adjustable and suitable for welding various metals.
3. Super desktop, humanized design, suitable for long-term work without fatigue.
4. High speed, high efficiency, large depth, small deformation, small heat-affected area, high welding quality, pollution-free solder joints, high efficiency and environmental protection.
5. Cross cursor indication and high-speed liquid crystal light valve are used to automatically shade the light and synchronously output the protective gas with the laser to ensure the beautiful solder joints and non-oxidative discoloration.
