CO2 3D Laser Welding Machine

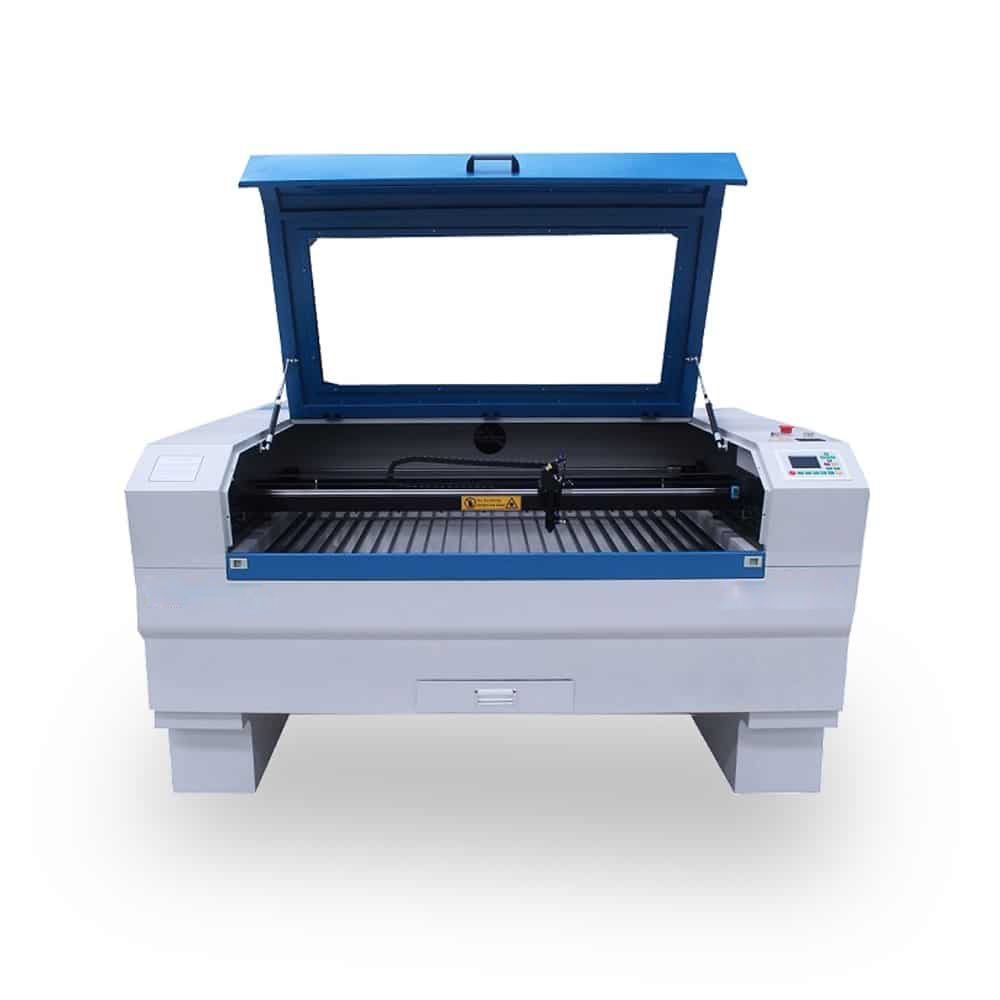

CO2 3D laser cutting machine

    Description

    This machine adopts imported dual linear guide and DSP system control software. The machine has stable performance and applicable for different industries.

Specifications:

X-Y Working Area 1300* 900mm (customization)
Laser power 80/ 100/ 130/ 150/ 180/ 200/ 220/ 280/ 300W
Laser type CO2
Laser head NO. One (two heads option)
Reflector and focus mirrors Imported
Linear rail Taiwan PMI
Table type Knife and Honeycomb table
Keyword Laser cutting machine, co2 laser cutting machine
Cooling system Water chiller cw3000
Other accessories Air pump, Exhausted system
Engraving Speed 0-60000 mm/min
Cutting speed 0-36000 mm/min
Resetting position accuracy ±0.01mm
Control system RD system
Software Laser work
Graphic format supported BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF
Software supported CorelDraw, Photoshop, AutoCAD, TAJIMA, Art cut
Laser Output 1-100% Software Setting
Operating temperature 0 - 45℃
Operating humidity 5 - 95%
Working Mode 3-phase Stepper motor
Dichroic Cutting Up to 256 colors
Gross power <2200W
Minimum shaping character English 1 x 1mm
Working Voltage 220V/50HZ -60HZ; single phase (110v option)
Machine Size 1670* 1310* 1050mm
Packing Size 1780* 1420* 1260mm
N. W 380KGS
G. W G. W

Introduction of CO2 3D Laser Cutting Machine:

1. Applicable materials:

Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, towers, glass and other nonmetal materials.

2. Applicable industries:

Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, jeans, packaging and paper industry.

Laser Welding Machine

Fiber laser cutting machine

Features:

1) Advanced technology: Adopt the structural design of Industry Heavy Haul Steel, one-step processing and molding in CNC Pentahedron Machine Center. After numerical control annealing treatment in low temperature, it can be used in long time and ensure stability.
2) Advanced spares: The laser lens is adopting advanced world-famous brand, smaller focusing spot, cutting streak is more specific, high work efficiency, better processing quality.
3) Easy operation: Professional CNC control system of fiber laser cutting machine, operate it on the computer, convenient, flexible and easy.
4) Low cost: The whole power consumption is only 30% of traditional laser cutting machine.
5) High cutting speed:2 times faster than CO2 laser,4-5times faster than YAG laser.

Specifications:

Item Specification
Laser Power 1000w to 15000w (customization)
Effective stroke X axis 1510mm (customization)
Y axis 4010mm (customization)
Z axis 120mm (customization)
Position accuracy X/Y axis (mm/m) ±0.05mm
X/Y axis repeat (mm/m) ±0.03mm
Z axis (mm/m) ±0.02mm
X/Y axis max position speed (m/min) 60m/min
Acceleration (G) 1.2G
Electrical voltage rating (v) 380V
Protection level IP54

Product Application:

1. Fiber laser cutting machine is a laser cutting machine that uses fiber laser generator as light source.
2. it can cut and punch different kinds of metal material with high precision and high speed.
3. It is widely used for middle and thin metal plate. Cutting carbon steel, stainless steel, aluminum, galvanized sheet, electrolytic plate and other metal materials with high quality, high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
