Medical Galvo Scanner

    Description

    Medical galvanometer scanner is the professional galvo scanner products mainly used in the fields of laser skin resurfacing, ophthalmic surgery and body tissues excision.

Specifications:

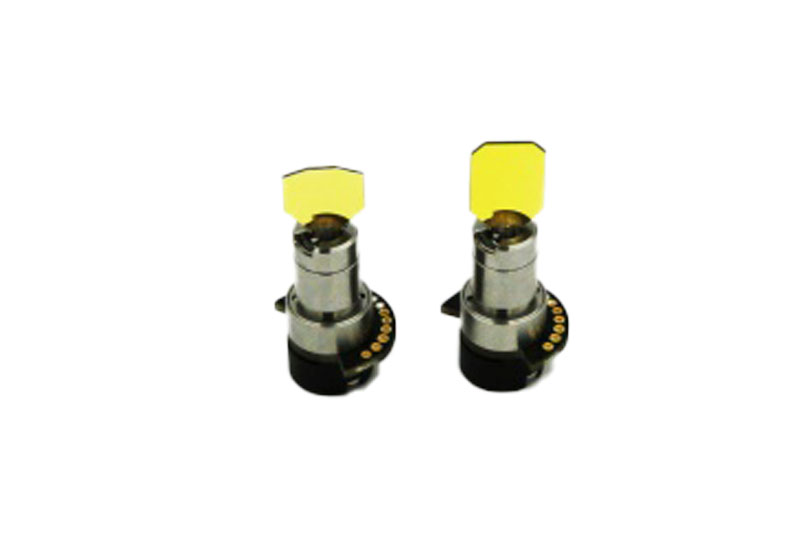

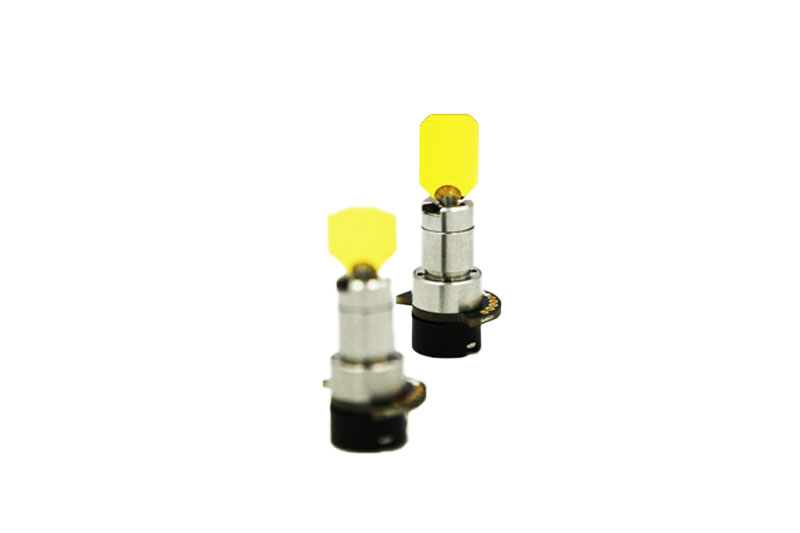

Motor Specification:
Input Aperture 3mm/ 5mm/ 7mm
Wavelength 266nm/ 355nm/ 405nm/ 532nm/ 650nm/ 808nm/ 980nm/ 1064nm/ 10.6um
Working Temperature 0℃- 45℃
Linearity 99.9%
Setting Time 0.17ms to 0.3ms
Scale Drift <40PPM/℃
Zero Drift <15μRad./℃
Long-term Drift Over 8h <0.5mRad.
RMS Current 2.0A
Peak Current 15A
Maximum Scan Angle ±15° to ±30°
Storage Temperature -10 to +60℃
Resolution 12μrad
Repeatability 8μrad
Frequency 20KHz to 40KHz

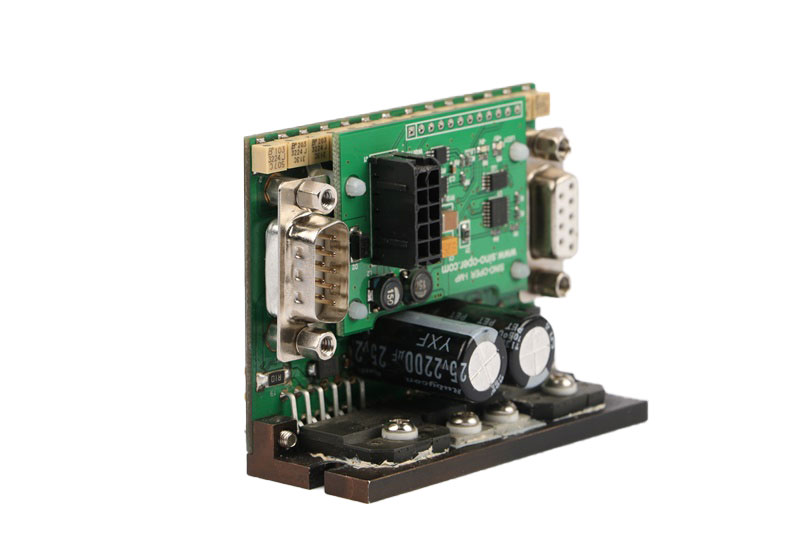

Servo Driver Board Specification:
Input Voltage MAX.RMS ±15 VDC
Interface Signals Digital XY2-100
Position Signal Input Resistance 1K±1% Ω
Position Signal Input Scale Factor 0.33V/°
Position Signal Output Scale Factor 0.33V/°
Working Temperature 0℃-45℃
