CO2 Metal Sealed RF Laser Tube

CO2 Metal Sealed RF Laser Tube

    Description

    Our company developed CO2 RF lasers are fully sealed, maintenance-free RF lasers and are OEM products for system integrators. This product has the advantages of small size, good spot pattern and stable power. It has a wide range of applications in marking and cutting.

Specifications:

Parameter Index

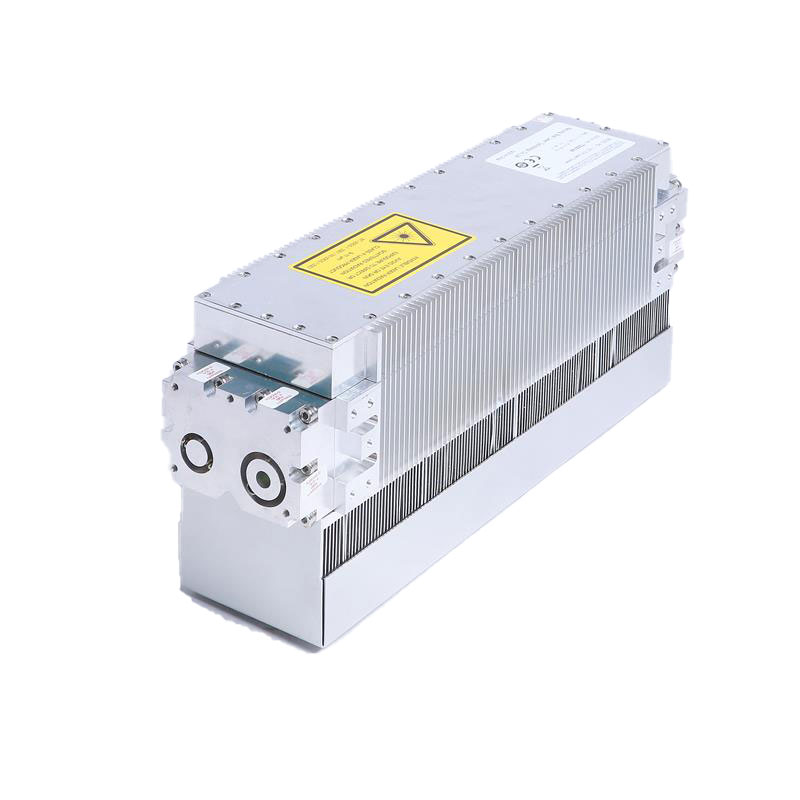

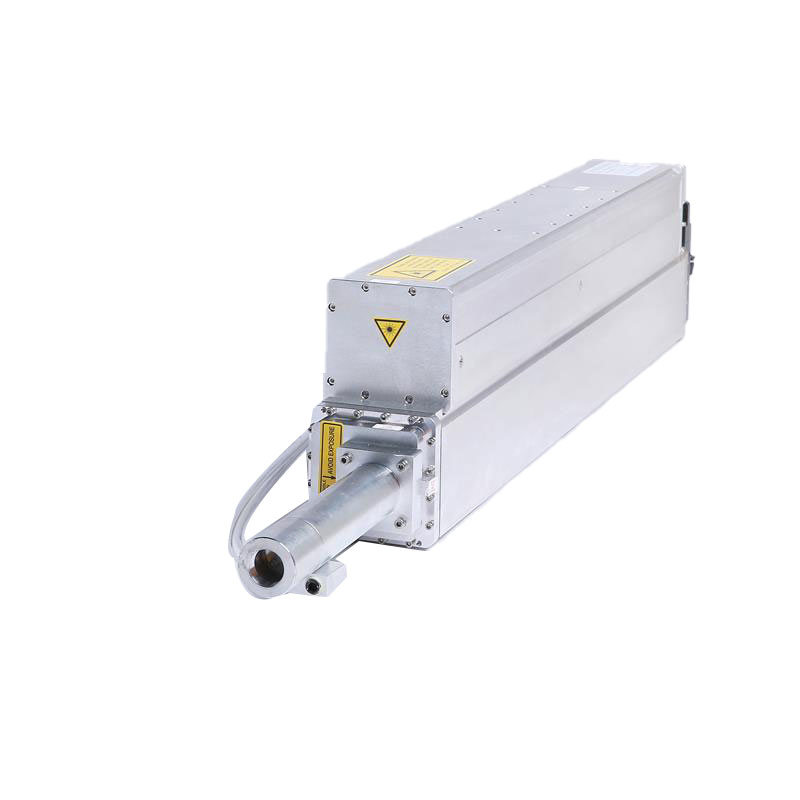

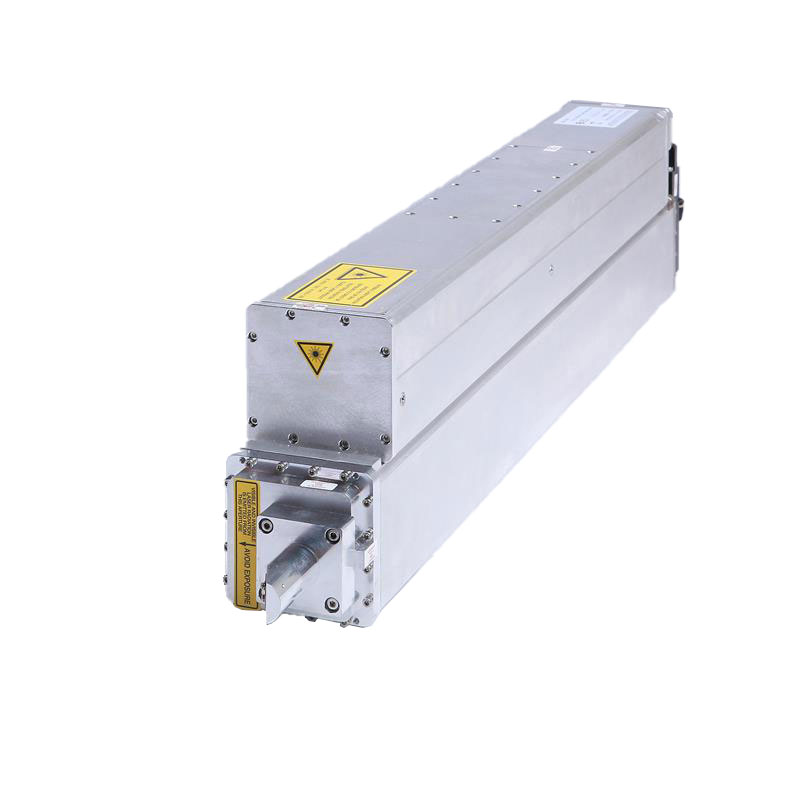

Laser model D10 D30 D120 D160
Rated power 10W 3OW 120W 160W
M²Spot quality <1.2 <1.2 <1.5 (K>0.67) <1.5 (K>0.67)
Shelving life >1 Year >1 Year >1 Year >1 Year
Peak effective power -- -- 250w 375W
Average power range 0-16W 0-40W 0-150W 0-190W
Frequency range 0-20kHz 0-25kHz 0-190kHz 0-190kHz
Power stability <±10% <±5% <±10% <±10%
Waist diameter (mm) 3.5 1.8 ±0.2 1.6±0.3(X); 2.3±0.4(Y) 14±0.3(X); 2.2±0.4(Y)
Divergence angle (after shaping) 4mrad <7.5mrad <11mrad <9mrad
Waist symmetry at the exit -- -- < 1.5:1 < 2.0:1
Beam pointing stability <200μrad <200μrad <200μrad <200μrad
Degree of polarization 50:1 vertical linear polarization >100:1 linear polarization >100:1 linear polarization >100:1 linear polarization
Duty cycle range 0-100% 0-100% 0-60% 0-60%
Light pulse rise and fall time <100ns <90μs <90μs <960μs
Wavelength (μm) 10.57– 10.63 10.55- 10.63 10.3- 10.8 10.3- 10.8
Cooling Air cooling Air cooling Water cooling Water cooling
