Xenon Flash Lamp Introduction

High intensity pulsed light for hair removal and cosmetic skin treatment is now the preferred solution for beauticians and medical users worldwide. As one of the most important parts, IPL flash lamp plays key role on the safety and treatment result.

IPL SHR xenon flash lamp we offer have the following features:

Excellent flash to flash reliability
High quality manufacturing standards
Consistent spectral output
High quality raw materials
Several lamp connectors are available
All lamps are tested after production
Long and consistent lifetime

Xenon Flash Lamp Specification:

OD (outer diameter) /mm	ID (Inner diameter) /mm	Total Glass length /mm
7	5	130
7	5	125
7	5	120
7	5	115
7	5	110
7	5	105
7	5	90
9	7	120
9	7	110

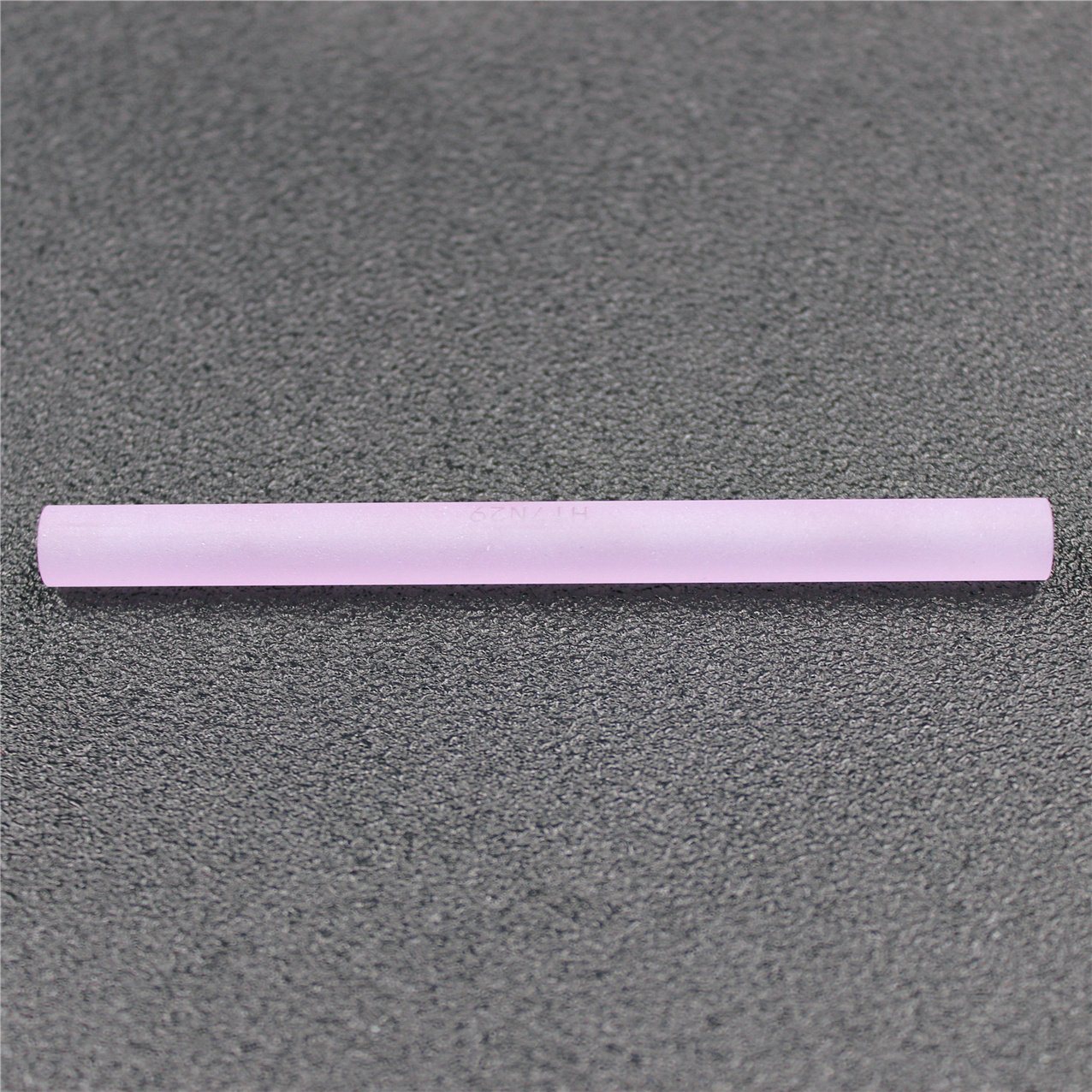

Crystal Rod Introduction

Nd: YAG (Neodymium Doped Yttrium Aluminum Garnet) has been and continue to be the most widely used laser crystal for solid-state crystal material. Nd: YAG crystals are used in all types of solid-state lasers systems-frequency-doubled continuous wave, high-energy Q-switched, and so forth. Compared with others laser crystals, its fluorescence lifetime is twice more than Nd: YVO4, and thermal conductivity is also better.

Crystal Rod Features

1. Material: nd yag crystalloid
2. ND dopping content: ±0.1%
3. parallesilm: 10"
4. Flatness: 10@632nm
5. Perpendicularity: <2
6. Interference fringes<0.5 fringes/inch
7. Extinction ratio>15db

Crystal Rod Specification:

Material	Nd: YAG Crystal
Dimension (Rods)	Diameter 3-30mm, length ≤300mm
Diameter Tolerance	+0/- 0.05mm
Coating	AR Coating @ 1064nm
Chamfer	0.1±0.05mm*45°
